PostPost subject: Belt CP with T-Rex head or Copter X
Reply with quote

Hey has anyone tried using a T-rex head with the Belt CP? I have read articles saying that all the parts are interchangeable but was wondering how far anyone has taking this. Very Happy I am placing a 450th motor with a castle 35 esc and hitec hs65 servos and want to be able to use align blades without sanding them down to fit the blade grips. So thanks for any info on this. Very Happy

THX
Back to top
View user's profile Send private message
vrthai
Extreme 3D
Extreme 3D


Joined: 03 Aug 2007
Posts: 188

PostPosted: Wed Sep 26, 2007 5:32 pm
PostPost subject:
Reply with quote

I'd love to know this too. I've heard and read from many places that the Belt-CP's parts is interchangeable with that of a T-REX. I've always wondered if it's true. Actually, I've heard this claim so many times that it almost sounds like it was one of the Belt's sales pitch Shocked

So if anyone knows for sure, it'll be much appreciated. Laughing
Back to top
View user's profile Send private message
vrthai
Extreme 3D
Extreme 3D


Joined: 03 Aug 2007
Posts: 188

PostPosted: Fri Sep 28, 2007 2:09 pm
PostPost subject:
Reply with quote

I still can't be sure if T-REX part will fit in a Belt-CP (because I am not a belt pilot Razz). But check these photos out, they sure look like align parts in a Belt-CP body!







More at this link (non-english).
Back to top
View user's profile Send private message
macsrgreat
Fully Charged
Fully Charged


Joined: 26 Sep 2007
Posts: 4

PostPosted: Fri Sep 28, 2007 7:49 pm
PostPost subject:
Reply with quote

Hey thx so much! THESE ARE COOOOL. The head is the ESKY but i wouldn't have thought a raptor canopy would have fit thx again. That is sweet.

Rus. Very Happy
Back to top
View user's profile Send private message
macsrgreat
Fully Charged
Fully Charged


Joined: 26 Sep 2007
Posts: 4

PostPosted: Fri Sep 28, 2007 8:58 pm
PostPost subject:
Reply with quote

Well they look like a variant of a Raptor canopy. Does anyone know exactly/

THX Smile
Back to top
View user's profile Send private message
rex123
Hopping Maniac
Hopping Maniac


Joined: 20 Sep 2007
Posts: 21

PostPosted: Sat Sep 29, 2007 1:11 pm
PostPost subject:
Reply with quote

macsrgreat wrote:
Well they look like a variant of a Raptor canopy. Does anyone know exactly/

THX Smile


Ohh yes this definitely looks cool Wink. I think it's some sort of custom-made T-REX canopy, Raptor canopy are much bigger than these. The tail boom is definitely from Align though, you can see the logo pretty clearly. Cool
Back to top
View user's profile Send private message
vrthai
Extreme 3D
Extreme 3D


Joined: 03 Aug 2007
Posts: 188

PostPosted: Sat Sep 29, 2007 4:08 pm
PostPost subject:
Reply with quote

macsrgreat wrote:
Well they look like a variant of a Raptor canopy. Does anyone know exactly/

THX Smile


The canopy is from a X-400. I had to go back and read the threads to find that out Razz .

Here's one Belt-CP with a T-REX canopy:



The owner aptly called it a Belt-SE. Cool

Again this is from the same link.
Back to top
View user's profile Send private message
macsrgreat
Fully Charged
Fully Charged


Joined: 26 Sep 2007
Posts: 4

PostPosted: Mon Oct 01, 2007 10:40 am
PostPost subject:
Reply with quote

Thanks. That is cool! Rock on! Thanks again for finding that out.

Rus.
Back to top
View user's profile Send private message
Troyboy
Hover Master
Hover Master


Joined: 29 May 2007
Posts: 12
Location: Australia

PostPosted: Sat Oct 20, 2007 12:25 pm
PostPost subject: Belt CP
Reply with quote

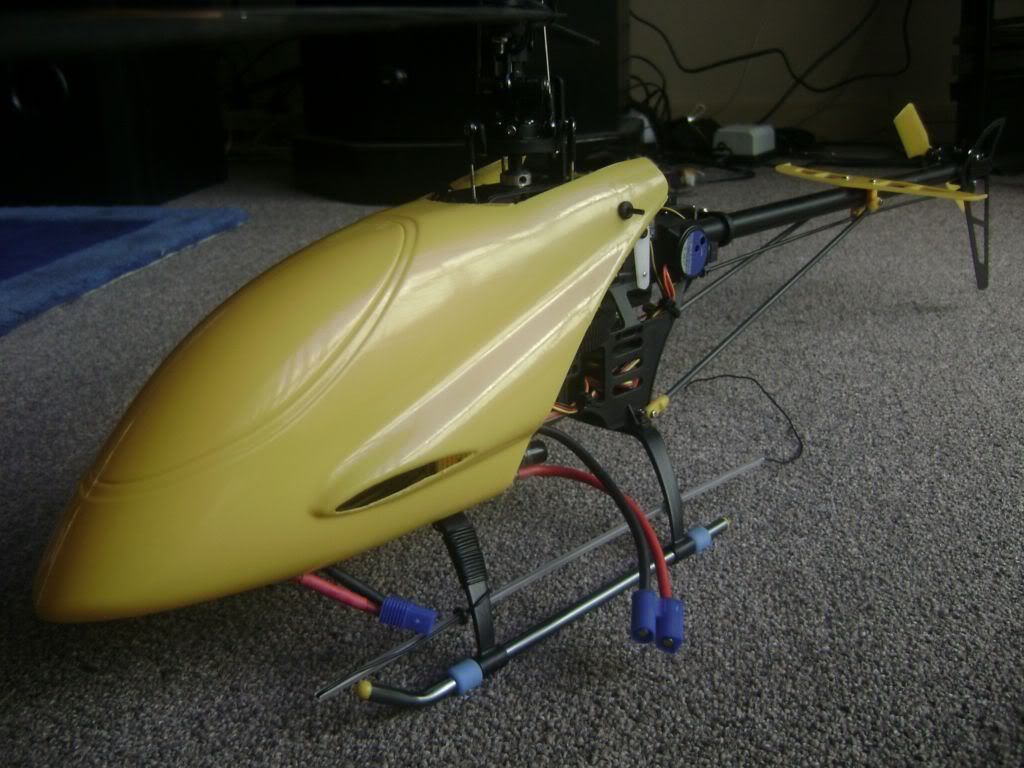

Here's a couple pics of my Belt CP.. Cool


Back to top
View user's profile Send private message
hound15
Extreme 3D
Extreme 3D


Joined: 11 Apr 2007
Posts: 160

PostPosted: Sun Oct 21, 2007 5:15 pm
PostPost subject:
Reply with quote

Troyboy, now that is definitely a T-REX canopy on a belt-cp! And you've managed to match the color scheme too Razz.

You're quite an impressive fleet! ::
E325 MINI TITAN, T-REX450XL, E-SKY LAMA V4, BELT CP, DX7, PHOENIX RC SIM.

That's a lot of helis Wink
Back to top
View user's profile Send private message
Jan
Charging
Charging


Joined: 20 Sep 2011
Posts: 2

PostPosted: Wed Sep 21, 2011 12:13 am
PostPost subject: CopterX head
Reply with quote

Hi!
I am new here, but I want to let you know that a CopterX head fits the Belt CP. I have done it! Use the same Esky rodlinks, but change the plastic links (on the rodlinks) that goes to the head.
You may also use a T-rex 450 se head, but if you do, the main shaft has to be shortened on the top. Just a few mm. Easily done with a dremel tool.
I may post some pic if it helps? I have also modified the servo linkage, with direct servo links to the head. Makes it much more stable. Very Happy
Back to top
View user's profile Send private message
Jan
Charging
Charging


Joined: 20 Sep 2011
Posts: 2

PostPosted: Wed Sep 21, 2011 12:49 am
PostPost subject:
Reply with quote

Ups...Forgot to mention that you have to use the belt-cp main shaft:-)
